J41N型 燃气截止阀
【产品说明】
J41N 型PN40 钢制截止阀（燃气专用截止阀）：手动、法兰连接、直通式、阀座密封面材料为尼龙塑料、公称压力PN40、阀体材料为碳素钢的截止阀。
【产品性能参数】
J41N 型PN40 钢制截止阀主要性能参数 | ||||
型号 | PN | 工作压力/ MPa | 适用温度/ ℃ | 适用介质 |
J41N-40 | 40 | 4.0 | ≤150 | 石油气、空气等无腐蚀性介质 |
【产品零部件材料】
J41N 型PN40 钢制截止阀零部件材料 | |||||
型号 | 材料 | ||||
阀体、阀盖 | 阀杆 | 密封面 | 填料 | ||
J41N-40 | 碳素钢铸件或锻件 | 碳素钢铸件或锻件 | 铁基合金 | 铁基合金 | |
【产品外形及结构尺寸】
J41N 型PN40 钢制截止阀外形及结构尺寸(mm) | |||||||||
DN | L | D | D1 | D2 | b | z×ød | H | D0 | 重量/KG |
10 | 130 | 90 | 60 | 40 | 16 | 4×ø14 | 198 | 120 | 4.5 |
15 | 130 | 95 | 65 | 45 | 16 | 4×ø14 | 233 | 120 | 5 |
20 | 150 | 105 | 75 | 55 | 16 | 4×ø14 | 275 | 140 | 7 |
25 | 160 | 115 | 85 | 65 | 16 | 4×ø14 | 285 | 160 | 9 |
32 | 180 | 135 | 100 | 78 | 18 | 4×ø18 | 302 | 160 | 12 |
40 | 200 | 145 | 110 | 85 | 18 | 4×ø18 | 355 | 200 | 17 |
50 | 230 | 160 | 125 | 100 | 20 | 4×ø18 | 373 | 240 | 24 |
65 | 290 | 180 | 145 | 120 | 22 | 8×ø18 | 408 | 280 | 33 |
80 | 310 | 195 | 160 | 135 | 22 | 8×ø18 | 436 | 320 | 44 |
100 | 350 | 230 | 190 | 160 | 24 | 8×ø23 | 480 | 360 | 60 |
125 | 400 | 270 | 220 | 188 | 28 | 8×ø25 | 558 | 400 | 89 |
150 | 480 | 300 | 250 | 218 | 30 | 8×ø25 | 611 | 400 | 130 |

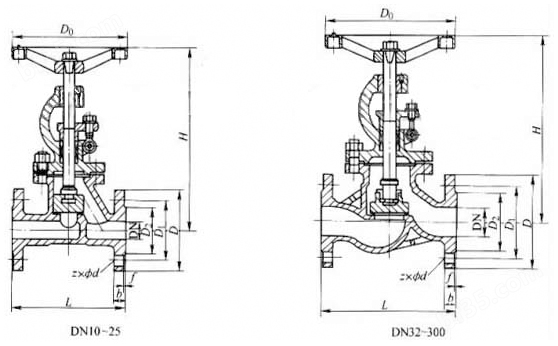

【产品外形及结构尺寸示意图】
