Q41F type floating soft seal ball valve
【Product use】
Q41F type PN16~PN63 floating soft-sealed ball valve is used on various pipelines of Class150~Class1500, PN16~PN63, JIS10K~JIS20K. It is used to cut off or connect the media in the pipeline. Different materials are selected, which can be applied to water, steam, oil, liquefied gas, natural gas, gas, nitric acid, acetic acid, oxidizing media, urea and other media.
【Product features】
1. Among various valves, the flow resistance of the ball valve is the smallest. When the full-diameter ball valve is opened, the diameter of the ball channel, the valve body channel and the connecting pipe are equal and form a straight diameter, and the medium can flow through almost without loss.
2. The ball valve can be fully closed and fully opened by rotating 90°, and it can be opened and closed quickly.Compared with gate valves and globe valves of the same specifications, ball valves are small in size and light in weight, making them easy to install in pipelines.
【Performance parameters】
| Model number | Q41F-16C | Q41F-16P | |
Working pressure（MPa） | 1.6~2.5 | ||
Applicable temperature（℃） | ≤180 | ||
| Applicable media | Water, steam, oil | Weakly corrosive media | |
| Material | Valve body, valve cover | Carbon steel cast steel | Chrome-nickel stainless steel |
| Sphere, valve stem | Chromium/chromium-nickel/chromium-nickel-molybdenum stainless steel | Chrome-nickel stainless steel | |
| Sealing ring | Flexible graphite washer/316+ flexible graphite washer | ||
| Packing | PTFE | ||
PN1.6MPa main connection size and weight
Nominal diameter DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 280 | 320 | 360 | 400 |
H | 59 | 63 | 75 | 85 | 95 | 107 | 142 | 152 | 178 | 252 | 272 | 342 |
W | 130 | 130 | 160 | 180 | 230 | 230 | 400 | 400 | 650 | 1050 | 1050 | 1410 |
Wt(Kg) | 2.5 | 3 | 5 | 6 | 7 | 10 | 15 | 19 | 33 | 58 | 93 | 160 |
PN2.5MPa main connection size and weight
Nominal diameter DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 320 | 400 | 400 | 550 |
H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | 345 |
W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1500 |
Wt(Kg) | 2.5 | 3 | 5 | 6 | 7.5 | 10 | 15 | 20 | 33 | 60 | 93 | 175 |
PN4.0MPa main connection size and weight
Nominal diameter DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L | 130 | 140 | 150 | 180 | 200 | 220 | 250 | 280 | 320 | 400 | 400 | 400 |
H | 59 | 63 | 75 | 85 | 95 | 107 | 142 | 152 | 178 | 252 | 272 | 342 |
W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1500 |
Wt(Kg) | 3 | 4 | 5 | 7 | 9 | 12 | 18 | 28 | 46 | 75 | 106 | 190 |
PN6.4MPa main connection size and weight
Nominal diameter DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 |
H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 305 | 398 |
W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1800 |
Wt(Kg) | 6.5 | 7 | 8 | 12 | 14 | 18 | 28 | 40 | 65 | 98 | 140 | 250 |
PN10MPa main connection size and weight
Nominal diameter DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 |
H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 305 | 398 |
W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1800 |
Wt(Kg) | 6.5 | 7 | 10 | 15 | 18 | 25 | 32 | 46 | 75 |

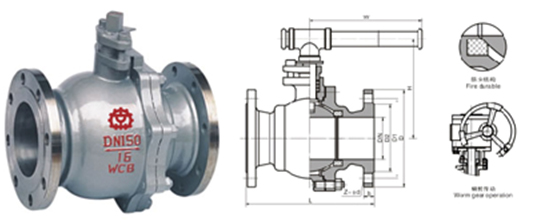

【Structure picture】
