H14W type internal thread stainless steel check valve
【Product use】
The function of the H14W-16R and H14W-16P internal threaded stainless steel check valves is to prevent the backflow of media in the pipeline.Check valves belong to the category of automatic valves, and the opening and closing parts are opened or closed by themselves by the force of the flowing medium.The check valve is only used on pipelines where the medium flows in one direction to prevent the medium from returning to prevent accidents.
【Performance parameters】
Model number | H14W-16T | |
Working pressure（MPa） | 1.6 | |
Applicable temperature（℃） | ≤150 | |
Applicable media | Water, steam, oil | |
Material | Valve body, valve cover, valve disc | Brass |
Pin shaft | Stainless steel | |
Sealing surface | Brass | |
Model number | H14W-16P | |
Working pressure（MPa） | 1.6 | |
Applicable temperature（℃） | －20～180 | |
Applicable media | Water, slightly corrosive gas liquid, saturated steam, direct drinking water | |
Material | Valve body, valve cover | Stainless steel |
Valve disc | Stainless steel | |
Sealing surface | Stainless steel | |
Main connection dimensions
SIZE | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" |
A | 15 | 20 | 25 | 32 | 40 | 50 | 65 | |
H | 42 | 51 | 60 | 67 | 75 | 81 | 93 | 104 |
L | 65 | 80 | 90 | 105 | 120 | 140 | 180 | 200 |

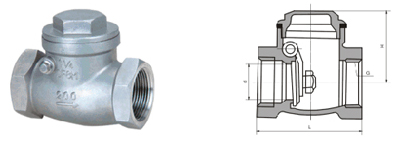

【Structure picture】
